Description
LED Multi-Funtional Signal light.
Functions: with intermittent/steady buzzer, steady light. The buzzer mode can be set directly through the wiring.
Buzzer: 85 dB @ 1 m
Installation: folding
Levels: 3 / 4 / 5.
Signal color: 3 colors RGV, 4 colors RGVB, 5 colors RGVBW.
Materials: aluminum lamp body + PC diffuser
Degree of protection: IP54
NEGATIVE COMMON LINE (PNP)
Available cable length: 3 m / 0.5 m with M12.
Features
Input voltage: ÷
Output voltage:
Output current:
Power output:
Mounting type: Montaggio su parete verticale, Montaggio su parete orizzontale, Staffa reclinabile

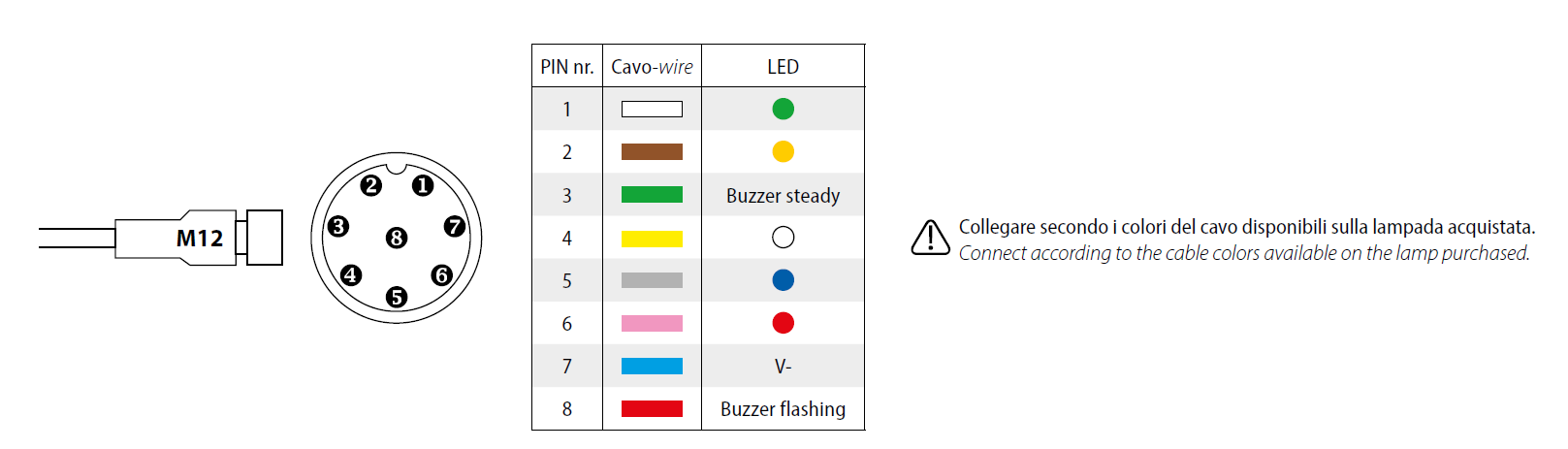

Connection type: Connettore M12
Rated voltage: 24 Vdc stab. ± 3%
Current rating: 200 mA
Leakage current:
Mounting type: Vertical wall mount, Horizontal wall mount, Reclining bracket
Connection Type: M12 connector
Rated voltage: 24 Vdc stab. ± 3%
Device type:
Mounting type: Vertical wall mount, Horizontal wall mount, Reclining bracket
Connection Type: M12 connector
Rated voltage: 24 Vdc stab. ± 3%
Luminous flux:
Light beam:
Light: White
CCT:
Rated voltage: 24 Vdc stab. ± 3%
Current rating: 200 mA
No. of sectors: 5
LED colors: Red, Yellow, Green, Blue, White
Buzzer: Intermittent, Steady
Connection Type: M12 connector
Mounting type: Vertical wall mount, Horizontal wall mount, Reclining bracket
Rated voltage: 24 Vdc stab. ± 3%
Speed:
Mounting type: Vertical wall mount, Horizontal wall mount, Reclining bracket
Connection Type: M12 connector
Dimensions (mm): Ø 50 x 384 mm
Weight (g): 550 g
aluminum lamp body
PC diffuser
Installation: folding
