Description
This filter is an adapter to be inserted between the coil and the solenoid valve cap. Equipped with noise suppressor circuitry, it is also useful in that it has a signal LED that illuminates
When the solenoid valve is energized. This model is good for valves according to DIN 43650 Form A with contact spacing of 18 mm.
Features
Input voltage: ÷
Output voltage:
Output current:
Power output:
Mounting type:
Link type: Ad innesto tra elettrovalvola e cappuccio
Rated voltage: 24 VDC
Current rating:
Leakage current:
Mounting type:
Connection type: Plug-in between solenoid valve and cap
Rated voltage: 24 VDC

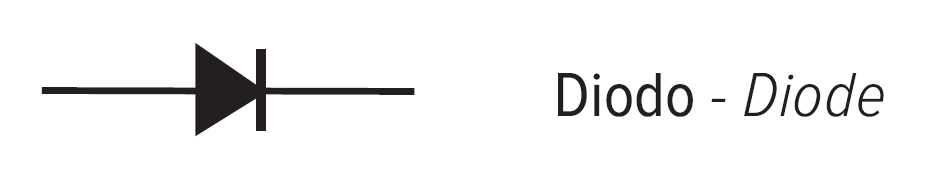

Anti-disturbance circuit: 3A diode
Mounting type:
Connection type: Plug-in between solenoid valve and cap
Rated voltage: 24 VDC
Luminous flux:
Light beam:
Light:
CCT:
Rated voltage: 24 VDC
Current rating:
No. of sectors:
LED colors:
Buzzer:
Connection type: Plug-in between solenoid valve and cap
Mounting type:
Rated voltage: 24 VDC
Current rating:
Leakage current:
Mounting type:
Connection type: Plug-in between solenoid valve and cap
Rated voltage: 24 VDC
Current rating:
Leakage current:
Mounting type:
Connection type: Plug-in between solenoid valve and cap

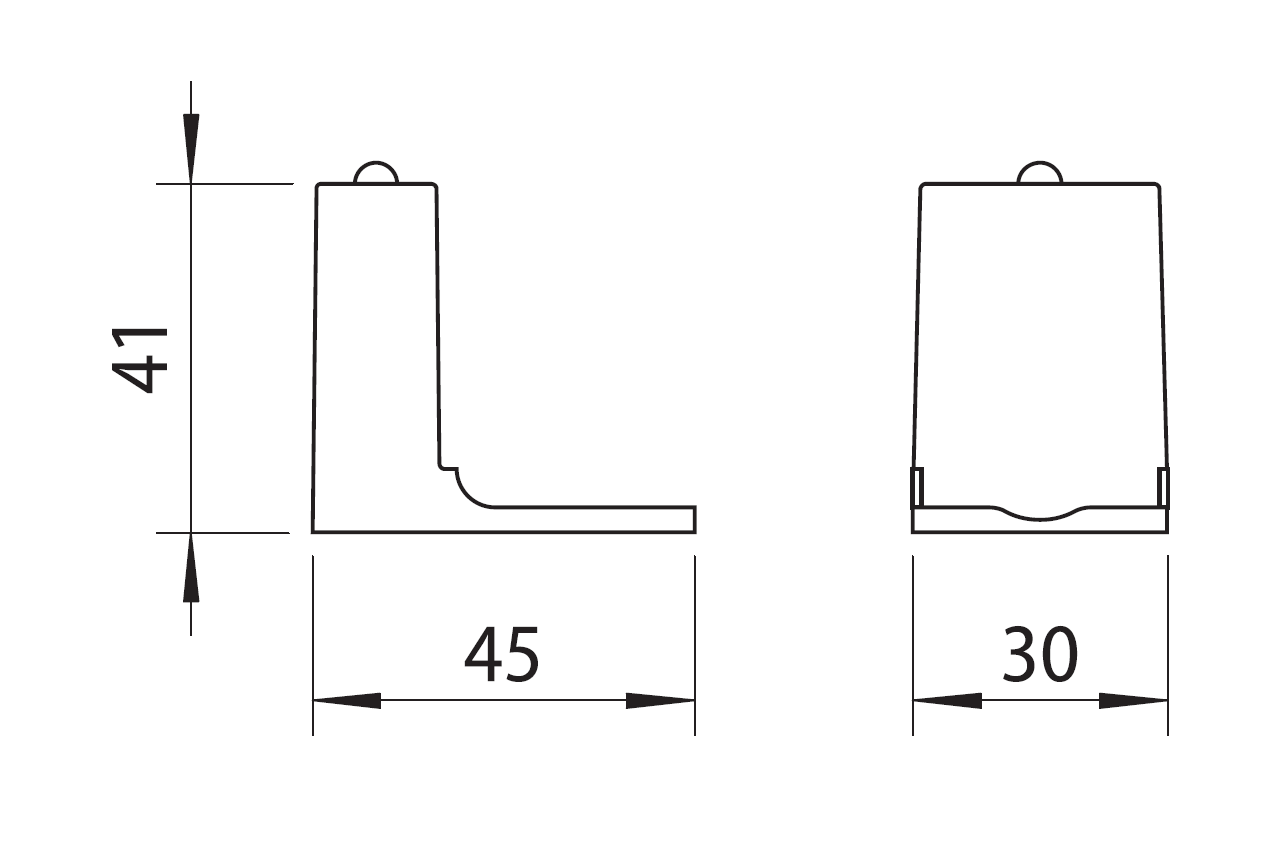

Dimensions (mm): 45 x 41 x 30
Weight (g):
Dimensions: 45 x 41 x 30 mm
Contact distance: 18 mm
Housing: Lexan, UL94-V2
Filler: Epoxy resin, UL94-V0
