Lighting devices

.
x
Model
Status
Nominal tension
Power (W)
Luminous flux
Light beam
Light
Materials
Type of connection
Mounting type
Certifications
IP65

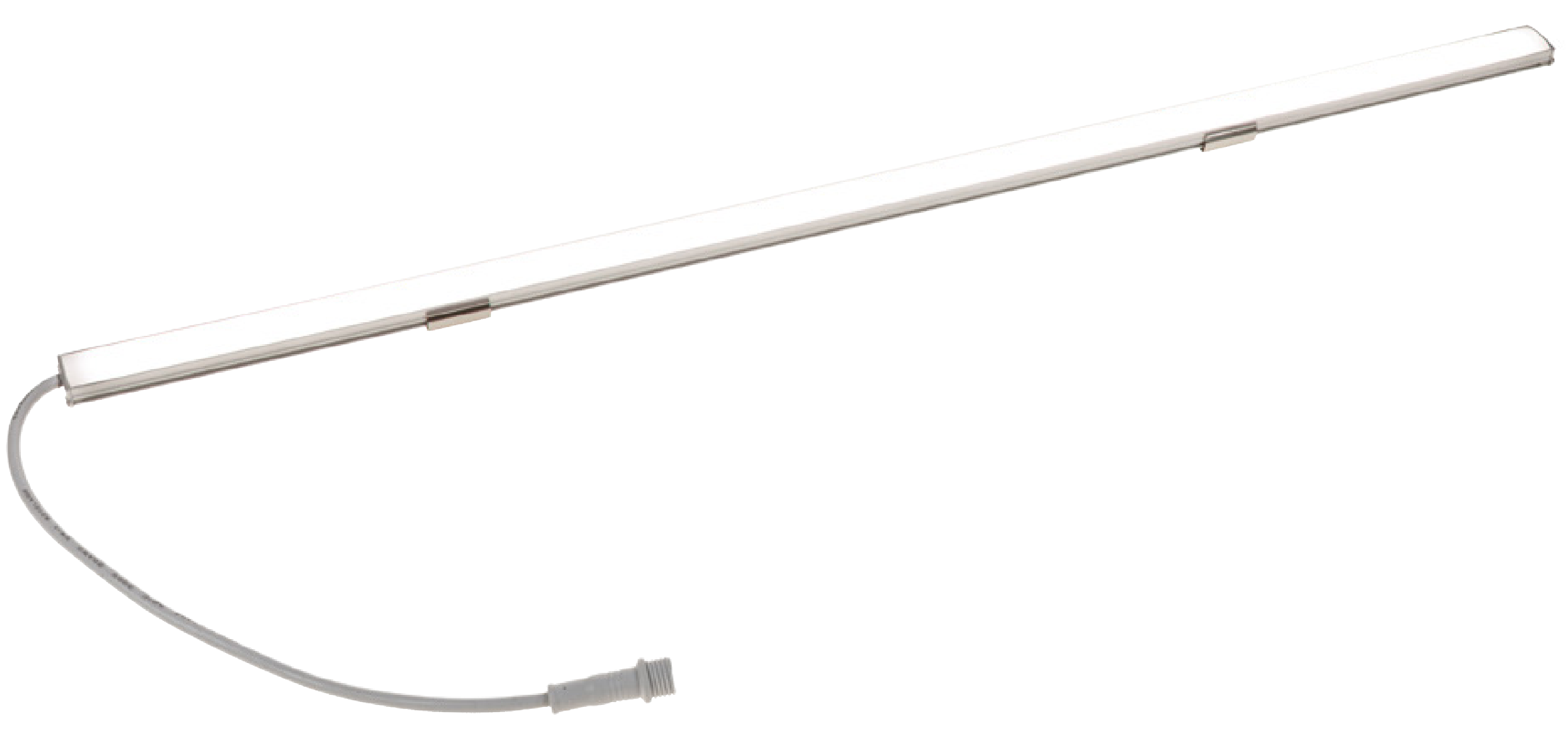

DTS-LED EKOS B 250
3470110250 Dimensions: 270 x 8 x 17.5 mm, 24 Vdc, 4 W, 275 lm, 120°, CCT 5500, 6000 K, White Light
IP65
DTS-LED EKOS B 250-1
3470110251 Dimensions: 270 x 8 x 17.5 mm, 24 Vdc, 4 W, 275 lm, 120°, CCT 5500, 6000 K, White Light, IN/OUT Cable
IP65
DTS-LED EKOS B 500
3470110500 Dimensions: 520 x 8 x 17.5 mm, 24 Vdc, 7 W, 550 lm, 120°, CCT 5500, 6000 K, White Light
IP65
DTS-LED EKOS B 500-1
3470110501 Dimensions 520 x 8 x 17.5 mm, 24 Vdc, 7 W, 550 lm, 120°, CCT 5500, 6000 K, White Light, IN/OUT Cable
IP65
DTS-LED EKOS B 1000
3470111000 Dimensions: 1020 x 8 x 17.5 mm, 24 Vdc, 15 W, 1100 lm, 120°, CCT 5500, 6000 K, White Light
IP65
DTS-LED EKOS B 1000-1
3470111001 Dimensions 1020 x 8 x 17.5 mm, 24 Vdc, 15 W, 1100 lm, 120°, CCT 5500, 6000 K, White Light, IN/OUT Cable
IP65
7 m cable. EKOS B
3470110007 Accessory for DTS-LED EKOS B
IP65
FIXING CLIP EKOS B
3470119999 Accessory for DTS-LED EKOS B
IP65
DTS-LED EKOS C
3470410250 Dimensions: 270 x 8 x 17.5 mm, 24 Vdc, 5 W, 350 lm, 120°, CCT 4500–5000 K, White Light
Phase-out
IP65
DTS-LED EKOS C
3470410251 Dimensions: 270 x 8 x 17.5 mm, 24 Vdc, 5 W, 350 lm, 120°, CCT 4500–5000 K, White Light, IN/OUT Cable
Phase-out
IP65
DTS-LED EKOS C
3470410501 Dimensions: 520 x 8 x 17.5 mm, 24 Vdc, 10 W, 600 lm, 120°, CCT 4500–5000 K, White Light, IN/OUT Cable
Phase-out
IP65
DTS-LED EKOS C
3470411001 Dimensions: 1020 x 8 x 17.5 mm, 24 Vdc, 20 W, 1300 lm, 120°, CCT 4500–5000 K, White Light, IN/OUT Cable
Phase-out
IP65
DTS-LED QPLC 300
3479000300 Dimensions: 300 x 39 x 24 mm, 24 Vdc, 4 W, 309 lm, 120°, CCT 6500 K, White Light
IP65
DTS-LED QPLC 500
3479000500 Dimensions: 500 x 39 x 24 mm, 24 Vdc, 7.5 W, 587 lm, 120°, CCT 6500 K, White Light
culus, ip69k, ip67
DTS-LED QCML 500
3479000750 Dimensions: 500 x 39 x 23 mm, 24 Vdc, 12 W, 800 lm, 120°, CCT 5700 K, White Light
culus, ip69k, ip67
DTS-LED QCML 900
3479000790 Dimensions: 900 x 39 x 23 mm, 24 Vdc, 18 W, 1200 lm, 120°, CCT 5700 K, White Light
IP65
DTS-LED EKOS 7C 300
3471120417 Dimensions: 324 x 19 x 20 mm, 24 Vdc, 8 W, 440 / 530 lm, RGBW light
IP65
DTS-LED EKOS 7C 500
3471120420 Dimensions: 524 x 19 x 20 mm, 24 Vdc, 13 W, 750 / 870 lm, RGBW light
IP65
DTS-LED EKOS 7C 1000
3471120498 Dimensions: 1024 x 19 x 20 mm, 24 Vdc, 25 W, 1450 / 1750 lm, RGBW light
Phase-out
IP65
DTS-LED EKOS 7C 1000
3471120499 Dimensions: 1024 x 19 x 20 mm, 24 Vdc, 25 W, 1450 / 1750 lm, RGBW light
culus, ip69k, ip67
DTS-LED QCML 7C 500
3479000650 Dimensions: 500 x 39 x 23 mm, 24 Vdc, 10 W, 300 lm, RGB light
culus, ip69k, ip67
DTS-LED QCML 7C 900
3479000690 Dimensions: 900 x 39 x 23 mm, 24 Vdc, 17 W, 600 lm, RGY light
DTS-LED SENSE 400-DC
3470024400 Dimensions: 400 x 45 x 31 mm, 24 Vdc, 8 W, 922 lm, 120°, CCT 6500, 7000 K, White Light
DTS-LED SENSE 600-DC
3470024600 Dimensions: 600 x 45 x 31 mm, 24 Vdc, 12 W, 1536 lm, 120°, CCT 6500–7000 K, White Light
DTS-LED SENSE 400-AC
3470230400 Dimensions: 400 x 45 x 31 mm, 230 VAC, 8 W, 922 lm, 120°, CCT 6500, 7000 K, White Light
DTS-LED SENSE 600-AC
3470230600 Dimensions: 600 x 45 x 31 mm, 230 VAC, 12 W, 1536 lm, 120°, CCT 6500, 7000 K, White Light
IP65
DTS-LED LINE PLAFO 1200
3470131200 Dimensions: 1185 x 78 x 66 mm, 230 VAC, 40 W, 3500 lm, 125°, CCT 5500–6000 K, White Light
DTS-LED LINE PLAFO 2-900
3479002000 Dimensions: 900 x 32 x 46 mm, 24 Vdc, 23 W, 1725 lm, 120°, CCT 5500, 6000 K, White Light
IP65
DTS-LED TWIN1000
3479000699 Dimensions: 1000 x 46 x 38 mm, 24 Vdc, 45 W, 2482 lm, 50°, CCT 4000 K, White, Red
IP65
DTS-LED LINE 2 280
3470120280 Dimensions: 280 x 28 x 41 mm, 24 Vdc, 8 W, 680 lm, 30°, CCT 5500, 6000 K, White Light
IP65
DTS-LED LINE 2 380
3470120380 Dimensions: 380 x 28 x 41 mm, 24 Vdc, 12 W, 1000 lm, 30°, CCT 5500, 6000 K, White Light
IP65
DTS-LED LINE 2 480
3470120480 Dimensions: 480 x 28 x 41 mm, 24 Vdc, 16 W, 1330 lm, 30°, CCT 5500, 6000 K, White Light
IP65
DTS-LED LINE 2 580
3470120580 Dimensions: 580 x 28 x 41 mm, 24 Vdc, 20 W, 1600 lm, 30°, CCT 5500, 6000 K, White Light
IP67
DTS-LED RC500
3479004500 Dimensions: 430 x 90 x 23 mm, 24 Vdc, 24 W, 2464 lm, 120°, CCT 6000, 6500 K, White Light
IP67
DTS-LED FLTP 300
3479003300 Dimensions: 304 x 64 x 21 mm, 24 Vdc, 12 W, 1080 lm, 120°, CCT 6000–6500 K, White Light
IP67
DTS-LED FLTP 600
3479003600 Dimensions 604 x 64 x 21 mm, 24 Vdc, 28 W, 2520 lm, 120°, CCT 6000, 6500 K, White Light
IP65
DTS-LED L3 250
3479001250 Dimensions: 268 x 32 x 24.7 mm, 24 Vdc, 6.5 W, 610 lm, 60°, CCT 5500–6000 K, White Light
IP65
DTS-LED L3 500
3479001500 Dimensions: 518 x 32 x 24.7 mm, 24 Vdc, 12.5 W, 1180 lm, 60°, CCT 5500–6000 K, White Light
IP65
DTS-LED L3 1000
3479001001 Dimensions: 1018 x 32 x 24.7 mm, 24 Vdc, 25 W, 2370 lm, 60°, CCT 5500, 6000 K, White Light
IP65
DTS-LED LINE CONQUICK 300
3470150300 Dimensions: 380 x Ø38 mm, 24 V AC/DC, 7 W, 665 lm, 120°, CCT 5500–6000 K, White Light
IP65
DTS-LED LINE CONQUICK 600
3470150600 Dimensions: 740 x Ø38 mm, 24 V AC/DC, 16 W, 1498 lm, 120°, CCT 5500, 6000 K, White Light
ip69, ip67
DTS-LED LINE EASY FIX 300
3470140300 Dimensions: Ø60 x 71 x 357 mm, 24 Vdc, 7 W, 665 lm, 120°, CCT 5500, 6000 K, White Light
ip69, ip67
DTS-LED LINE EASY FIX 600
3470140600 Dimensions: Ø60 x 71 x 701 mm, 24 Vdc, 16 W, 1498 lm, 120°, CCT 5500, 6000 K, White Light
ip69, ip67
DTS-LED LINE EASY FIX 800
3470140800 Dimensions: Ø60 x 71 x 897 mm, 24 Vdc, 20 W, 1997 lm, 120°, CCT 5500, 6000 K, White Light
culus, ip69k, ip67
DTS-LED QMFLN 300
3479000630 Dimensions: 310 x 51 x 67.4 mm, 24 Vdc, 12.5 W, 851 lm, 120°, CCT 5500, 6000 K, White Light
culus, ip69k, ip67
DTS-LED QMFLN 600
3479000660 Dimensions: 620 x 51 x 67.4 mm, 24 Vdc, 25 W, 1719 lm, 120°, CCT 5500–6000 K, White Light
ip67, ip65
DTS-LED LINE 300
3470100300 Dimensions: 300 x 53 x 50 mm, 24 Vdc, 7 W, 665 lm, 120°, CCT 5500, 6000 K, White Light
ip67, ip65
DTS-LED LINE 600
3470100600 Dimensions: 635 x 53 x 50 mm, 24 Vdc, 18 W, 1498 lm, 120°, CCT 5500, 6000 K, White Light
ip67, ip65
DTS-LED LINE 800
3470100800 Dimensions: 835 x 53 x 50 mm, 24 Vdc, 20 W, 1997 lm, 120°, CCT 5500, 6000 K, White Light
IP66
DTS-LED KES STRIP 60 TN-14N
8T00024113 Dimensions: 615 x 84 x 98 mm, 230 VAC, 14 W, 2070 lm, 120°, CCT 4000 K, White Light
IP66
DTS-LED KES STRIP 120 TN-27N
8T00024116 Dimensions: 1175 x 84 x 98 mm, 230 VAC, 27 W, 4090 lm, 120°, CCT 4000 K, White Light
IP66
DTS-LED KES STRIP 120 TN-38N
8T00024117 Dimensions: 1175 x 84 x 98 mm, 230 VAC, 38 W, 5880 lm, 120°, CCT 4000 K, White Light
IP66
DTS-LED KES STRIP 150 TN-45N
8T00024122 Dimensions: 1455 x 84 x 98 mm, 230 VAC, 45 W, 7280 lm, 120°, CCT 4000 K, White Light
IP65
DTS-LED 145
3470155044 Dimensions: 398 x 180 x 85 mm, 24 Vdc, 45 W, 5000 lm, 120°, CCT 4000 K, White Light
IP66
RADIANT 8S-211S
8000017626 Dimensions: 407 x 302 x 70 mm, 230 VAC, 50 W, 7530 lm, 60°, CCT 4000 K, White Light
IP65
DTS-LED ARM
3470200001 Dimensions Ø113 mm, 24 Vdc, 9.5 W, 830 lm, 30°, CCT 5500, 6000 K, White Light
IP65
DTS-LED LONG ARM
3470200002 Dimensions: Ø113 mm, 24 Vdc, 9.5 W, 830 lm, 30°, CCT 5500–6000 K, White Light
IP65
DTS-LED LONG ARM
3470223002 Dimensions: Ø113 mm, 230 VAC, 9.5 W, 830 lm, 30°, CCT 5500–6000 K, White Light
IP65
DTS-LED FLEXY ARM-4
3470200007 Dimensions: Ø 59 mm, 24 Vdc (regulated ± 3%), 5 W, 420 lm, 30°, CCT 6000, 6500 K, White Light
IP65
DTS-LED ARM-4
3470200008 Dimensions: Ø 59 mm, 24 V AC/DC, 5 W, 420 lm, 30°, CCT 6000, 6500 K, White Light
IP65
DTS-LED SPOT-4
3470200009 Dimensions: Ø 59 mm, 24 Vdc regulated ± 3%, 5 W, 420 lm, 30°, CCT 6000, 6500 K, White Light
IP65
DTS-LED FLEXY ARM-3
3470200003 Dimensions: Ø 70 x 674 mm, 24 Vdc, 4.5 W, 324 lm, 40°, CCT 5500–6000 K, White Light
DTS-LED FLEXY ARM-3-MAG
3470200005 Dimensions: Ø 70 x 475 mm, 24 Vdc, 4.5 W, 324 lm, 40°, CCT 5500, 6000 K, White Light
IP65
DTS-LED FLEXY ARM SPOT
3470200004 Dimensions: Ø 28.6 x 659 mm, 24 Vdc, 2.5 W, 100 lm, 30°, CCT 5500, 6000 K, White Light
IP67
DTS-LED POINT 6
3470600001 Dimensions: 96 x 79 x 64 mm, 12–30 Vdc, 12 W, 1093 lm, 25°, CCT 6500–7000 K, White Light
IP67
DTS-LED POINT 12
3470600002 Dimensions: 164 x 79 x 64 mm, 12–30 Vdc, 26 W, 2062 lm, 25°, CCT 6500–7000 K, White Light
IP67
DTS-LED POINT 18
3470600003 Dimensions: 232 x 79 x 64 mm, 12–30 Vdc, 38 W, 3071 lm, 25°, CCT 6500–7000 K, White Light
ip67, ip68
DTS-LED POINT 24
3470600004 Dimensions: 355 x 80 x 85 mm, 12–30 Vdc, 72 W, 3649 lm, 10°, CCT 6500, 7000 K, White Light
ip69k, ip67
DTS-LED QMHL
34791HF150 Dimensions: 155 x 105 x 36 mm, 24 Vdc, 12 W, 884 lm, 60°, CCT 6500, 7000 K, White Light
